How Do You Adjust the Air Fuel Mixture on a Harley Davidson

Hone your Harley's performance by adjusting the air-fuel mixture, discovering the secret to unlocking its true power and unleashing an exhilarating ride.

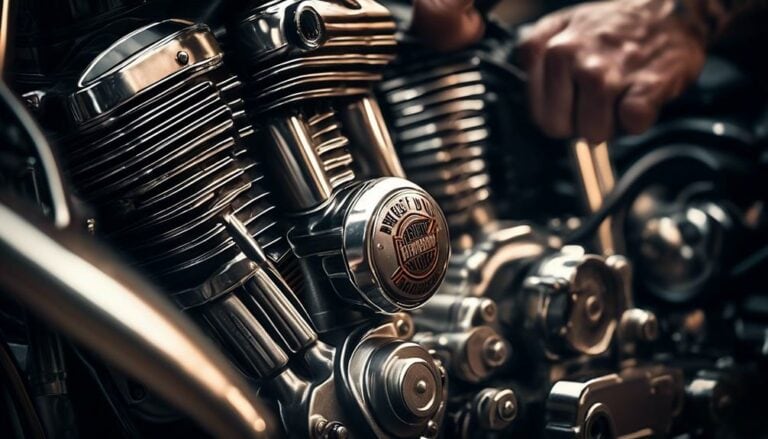

adjusting harley davidson s mixture

So, you've got yourself a mean machine, a Harley Davidson, and you're looking to fine-tune its performance by adjusting the air-fuel mixture. Well, let's get down to brass tacks and talk about how you can achieve that.

It's a process that might seem a bit daunting at first, but fear not, because with the right tools and a little know-how, you'll be on your way to optimizing your ride.

But before we get into the nitty-gritty details, let me tell you, there's a world of difference waiting for you once you find that sweet spot in your Harley's air-fuel mixture. Trust me, it's worth the ride.

Key Takeaways

  • Adjusting the air fuel mixture is crucial for optimal engine performance, fuel efficiency, and emissions reduction on a Harley Davidson.
  • The use of specific tools like a screwdriver, tachometer, wrenches, pliers, and possibly an oxygen sensor wrench, spark plug wrench, carburetor adjustment tool, and diagnostic scanner is essential for adjusting the air fuel mixture properly.
  • The air fuel mixture screw on a Harley Davidson carburetor can be located at the bottom and adjusted counterclockwise to richen or clockwise to lean out the mixture.
  • Testing, fine-tuning, and regular maintenance are necessary to find the optimal air fuel mixture and maintain it for optimal performance.

Understanding the Air Fuel Mixture

Understanding the air fuel mixture is crucial for proper functioning of the carburetor in motorcycles, particularly when it comes to adjusting the air-fuel mixture on a Harley Davidson. The air fuel ratio plays a vital role in determining the performance and efficiency of the engine. It refers to the ratio of air to fuel in the combustion chamber during the combustion process. Achieving the right air fuel ratio is essential for optimal engine performance, as it directly affects factors such as power output, fuel economy, and emissions.

In the world of motorcycles, there are two main systems for delivering the air fuel mixture: carburetors and fuel injection. Carburetors, like those found on older Harley Davidson models, rely on mechanical principles to mix the air and fuel before entering the combustion chamber. Fuel injection systems, on the other hand, use electronic sensors and injectors to precisely control the air fuel mixture for better performance and fuel efficiency.

When it comes to adjusting the air fuel mixture on a Harley Davidson, particularly with carburetors, it's important to understand the impact of different adjustments on the overall performance. The air fuel mixture can be adjusted using the idle air mixture screw. By turning the screw counterclockwise to set it at around one and three-quarters turns out, you can achieve the optimal air fuel mixture for idle operation.

To adjust the air fuel mixture on a Harley Davidson, it's necessary to locate and access the carburetor screw by removing the cover. Using a screwdriver with an index, you can make precise adjustments to the air fuel mixture. It's important to experiment with different adjustments and test ride the motorcycle multiple times to ensure that the air fuel mixture is properly adjusted for optimal performance and fuel efficiency.

Understanding the air fuel mixture and its importance in motorcycle carburetors, particularly on Harley Davidson models, is critical for achieving the desired liberation on the open road. By mastering the art of adjusting the air fuel mixture, you can unleash the true potential of your Harley Davidson and experience the thrill of optimal performance and fuel efficiency.

Tools Needed for Adjusting the Air Fuel Mixture

To adjust the air fuel mixture on a Harley Davidson, you'll need a few essential tools. These tools are crucial for achieving the optimal performance and efficiency of your motorcycle.

Firstly, you'll need a screwdriver, preferably a flathead screwdriver, to access and adjust the air fuel mixture screw. This screw is typically located on the carburetor of your Harley Davidson.

Additionally, you'll need a tachometer to accurately measure the engine's RPM (revolutions per minute). This tool is essential for determining the correct adjustment of the air fuel mixture.

Lastly, it's recommended to have a set of wrenches and pliers to ensure a secure and proper adjustment. These tools will allow you to loosen and tighten any necessary screws or bolts during the adjustment process.

Now that you're aware of the tools required, let's briefly discuss the steps involved in adjusting the air fuel mixture.

Firstly, start your motorcycle and allow it to warm up to its operating temperature. Then, using the tachometer, determine the engine's RPM at idle.

Next, locate the air fuel mixture screw on the carburetor and gently turn it clockwise or counterclockwise to adjust the air fuel mixture. It's important to make small adjustments and evaluate the impact on the engine's performance.

Locating the Air Fuel Mixture Screw on a Harley Davidson

To locate the air fuel mixture screw on your Harley Davidson, you'll first need to locate the cover behind which the screw is hidden. Once you have found the cover, you can proceed to access the screw and make necessary adjustments. Here are the steps to follow:

  • Remove the cover: Use a screwdriver with an index to remove the cover and gain access to the air fuel mixture screw.
  • Locate the screw: Look for a screw at the bottom of the carburetor. For CB carburetors, the screw is located at the bottom, while CV carburetors have a standard placement on Sportsters.
  • Adjust the screw: Use a screwdriver to adjust the screw counterclockwise. The screw should be set at no more than two turns, typically around one and three-quarters.
  • Experimentation: Adjusting the screw to two and a half turns out may indicate a small idle jet. It's important to experiment to find the optimal air fuel mixture for your motorcycle.
  • Troubleshooting: If you're unsatisfied with the adjustment, consider cleaning the carburetor and changing the starter jet. Test ride the bike multiple times to ensure proper adjustment and troubleshoot any issues with a rich or lean fuel mixture.

Adjusting the Air Fuel Mixture on a Harley Davidson

Adjusting the air-fuel mixture on your Harley Davidson is a critical step in optimizing the performance and efficiency of your motorcycle's CB carburetors. By ensuring the right balance of air and fuel, you can achieve smoother acceleration, improved fuel economy, and overall better engine performance. To help you understand the process clearly, refer to the table below:

Step Procedure Key Considerations
1 Start the engine and let it warm up to operating temperature. Ensure the motorcycle is on a level surface and in a well-ventilated area.
2 Locate the idle air mixture screw on the carburetor. Refer to the motorcycle's manual or consult a professional for guidance if needed.
3 Turn the screw clockwise to lean out the mixture or counterclockwise to richen it. Make small adjustments and take note of the changes in engine performance.
4 Find the optimal air-fuel mixture by observing the engine's response. Look for smooth idling, quick acceleration, and minimal exhaust smoke.
5 Repeat the process if necessary and fine-tune the mixture for best results. Regularly inspect and clean the carburetor to prevent clogs and ensure proper functioning.

Regular maintenance is crucial for maintaining optimal air-fuel mixture and reducing common issues like rough idling, poor fuel efficiency, and engine hesitation. By following these steps and incorporating regular maintenance into your routine, you can enjoy a liberating riding experience on your Harley Davidson.

Testing and Fine-Tuning the Air Fuel Mixture on a Harley Davidson

You can fine-tune and test the air-fuel mixture on your Harley Davidson by making small adjustments to the idle air mixture screw. This screw is located behind the cover on your motorcycle's carburetor. To adjust the air-fuel mixture, use a screwdriver with an index and turn the screw clockwise. Aim to have the screw turned in at around one and a half to two turns out, and count the number of rotations to track adjustments. It's important not to turn the screw more than two turns counterclockwise, as this can disrupt the proper functioning of the carburetor.

To test the adjustments, take your motorcycle for a ride and observe its performance. Pay attention to any changes in acceleration, idling, or overall smoothness. If you're unsatisfied with the adjustment, consider changing the starter jet. Experiment with different adjustments until you find the optimal air-fuel mixture for your Harley Davidson.

In troubleshooting common issues, remember to ask questions for clarification if needed. It's essential to have a clear understanding of the adjustments and their effects on your motorcycle's performance.

Conclusion

In conclusion, adjusting the air-fuel mixture on a Harley Davidson is a task that requires precision and experimentation.

By locating the air mixture screw and using the appropriate tools, riders can fine-tune their motorcycle's performance.

Testing and riding the bike multiple times allows for adjustments to be made until optimal performance is achieved.

Remember to count rotations and consider changing the starter jet if necessary.

With patience and persistence, riders can ensure their Harley Davidson is running at its best.
